TruGuard NVR8108 Network Video Recorder
Professional 1 SATA Bay Network Video Recorder
The TruGuard 10-Channel NVR is a professional-grade network video recorder designed for advanced surveillance applications. With 80 Mbps bandwidth capability and support for up to 16TBof storage across 1 SATA, it delivers exceptional recording performance and reliability.
Supporting up to 1 channels of 4K video decoding and equipped with 1× HDMI, this NVR provides crystal-clear video monitoring and playback. The system features advanced H.265+ compression technology, significantly reducing storage requirements while maintaining superior image quality.
Key Features
- Motion Detection
- Human Detection
- Line-crossing Detection
- Vehicle Retrograde
- Staff Absence
- Loitering
- Area Intrusion
- Vehicle Illegal Parking
- Manual
- Schedule
- Motion Detection
- Alarm
- Stop
System
- Platform
- Embedded LINUX
- Architecture
- Pure hardware decoding
Video
- Split Modes
- 1, 4, 6, 8, 10
- Bandwidth
- 80 Mbps
- Decoding
- 4K: 1, 1080P: 4, 4MP_D1: 4MP + 5×D1,4MP + 7×D1, D1: 10×D1
- Compression
- H.265+, H.265, H.264
- Output Resolutions
- 3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×800, 1024×768
Storage & Interface
- Hard Drives
- 1 SATA
- Maximum Capacity
- 16TB
- USB Ports
- 2× USB2.0 (rear)
- Display Ports

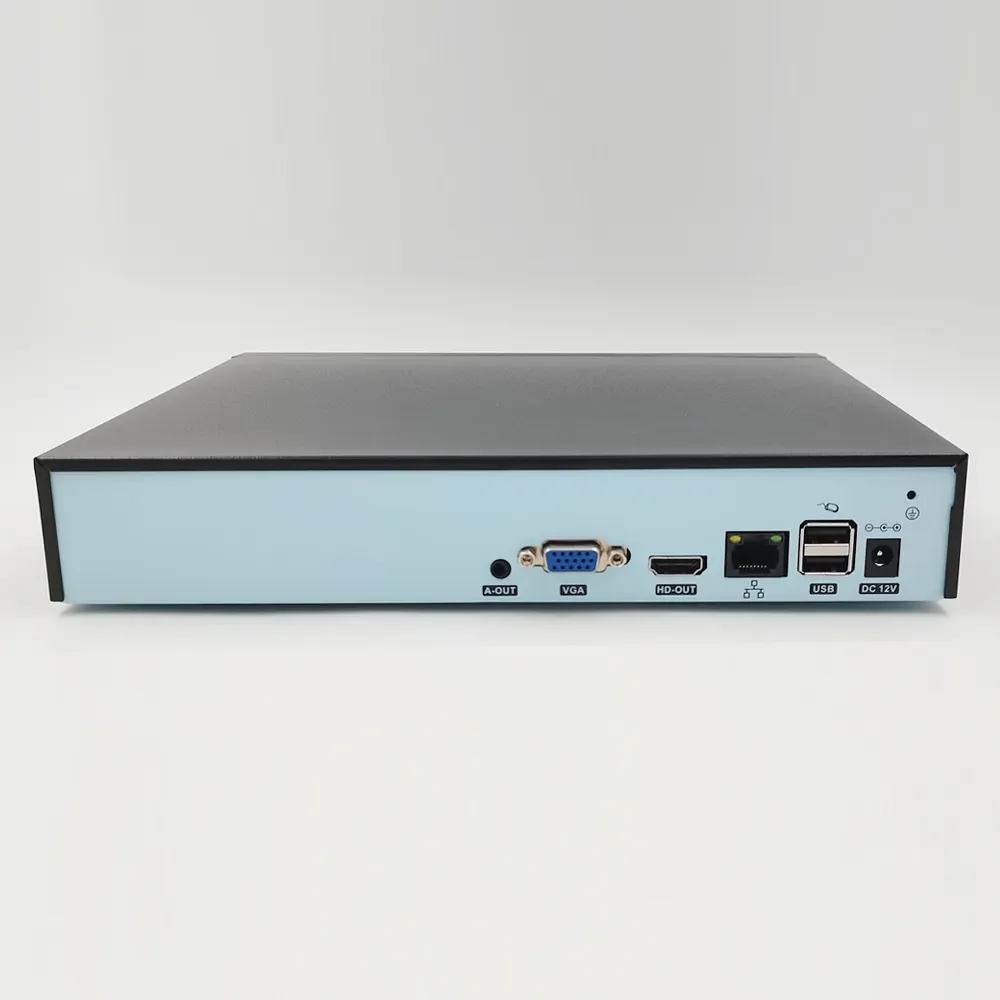

- 1× HDMI, 1× VGA
Network & Audio
- Protocols
- TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP, GB28181
- Mobile Support
- Android, iOS
- Audio Codec
- G.711A/U
- Audio Interfaces
- HDMI audio output, Audio output (3.5mm jack), Audio input (3.5mm jack)
